Modular DRSA-250 Wheel Block System

Modular DRSA-250 Wheel Block System

250 Wheel Blocks

Horizontal guide-roller arrangement with damper for travel-wheel system (wheel blocks system) size 250 type overall width 230mm.Horizontal Guide-Roller Arrangement for IMotors, Geared Motors, Controlers, and Accessories Gear Boxes and Geared Motors System of Travel Wheels.

Wheel-blocks-200-size

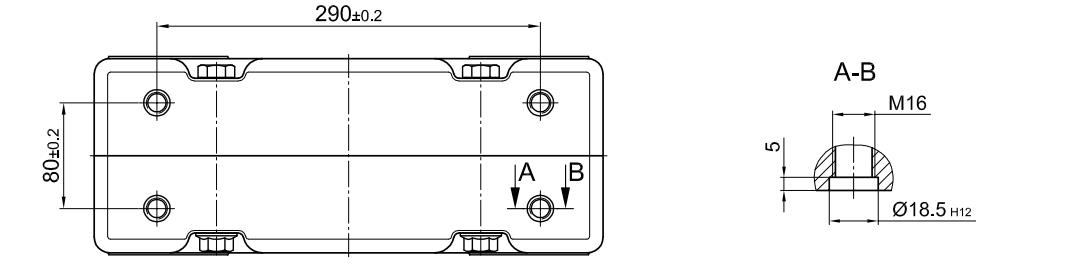

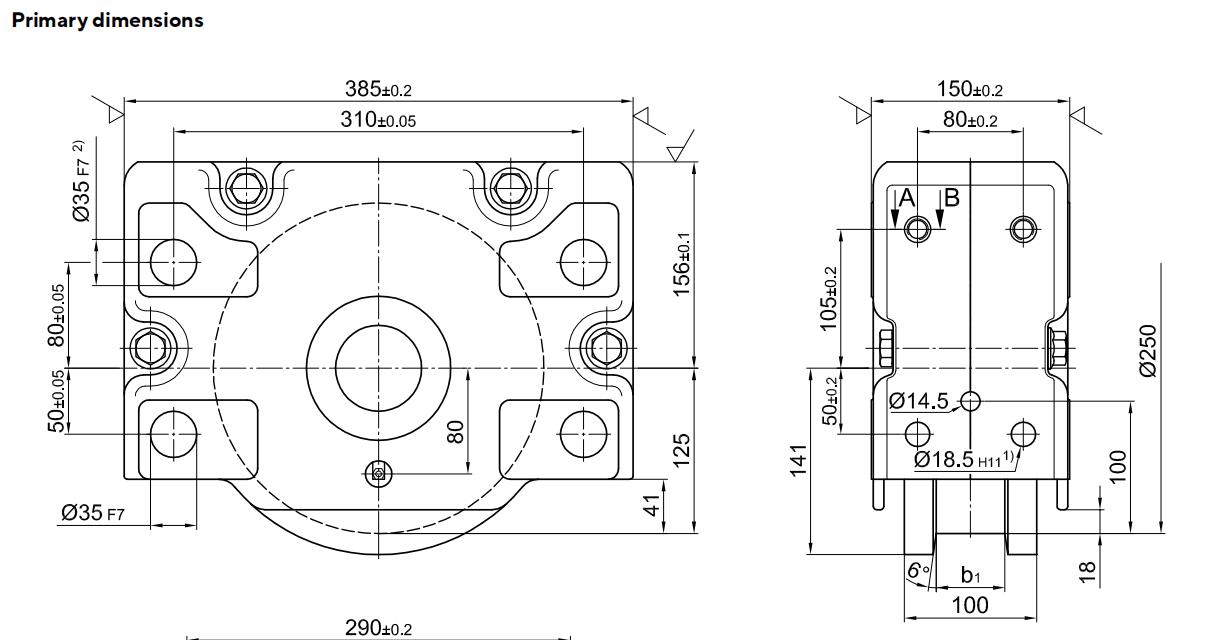

1) Due to the use of retained nuts M16 in the holes 18.5H11, the threaded connection are attained as in section A-B

2) Available with hole Ø40 F8

Weight: ca. 52 kg

max. wheel load: 12800 kg

Ordering examples-wheel block140

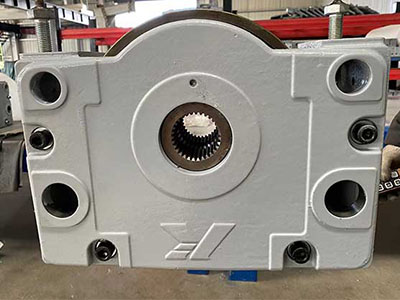

Wheel block 250, driven, with internal taper, with two-sided wheel flange, Design Form 1, running tread 65 mm.
Wheel block 250, non driven, without internal taper, with two-sided wheel flange, Design Form 1, running tread 65 mm:

Wheel block 250, non driven, without internal taper, with two-sided wheel flange,

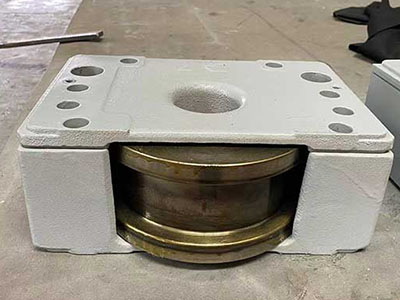

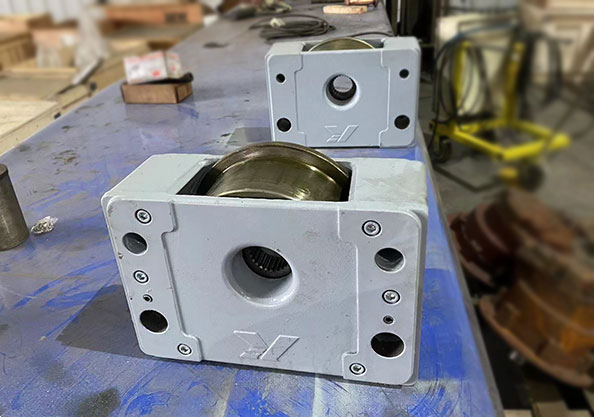

3.Wheel block 250, driven, with internal taper, without wheel flanges.

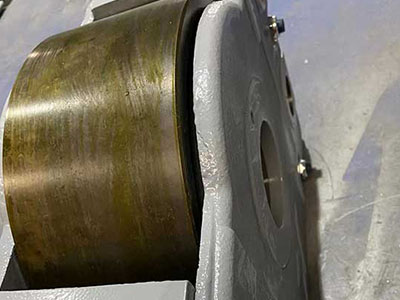

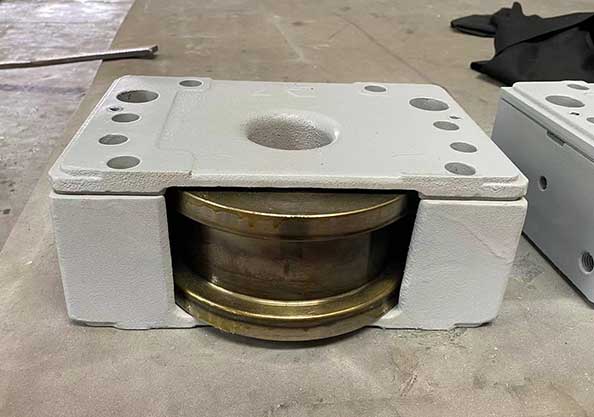

Wheel block 250,driven without wheel flanges

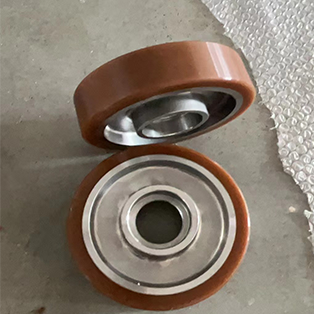

4.Wheel block 250, driven, with internal taper, with Vulkollan-binding.

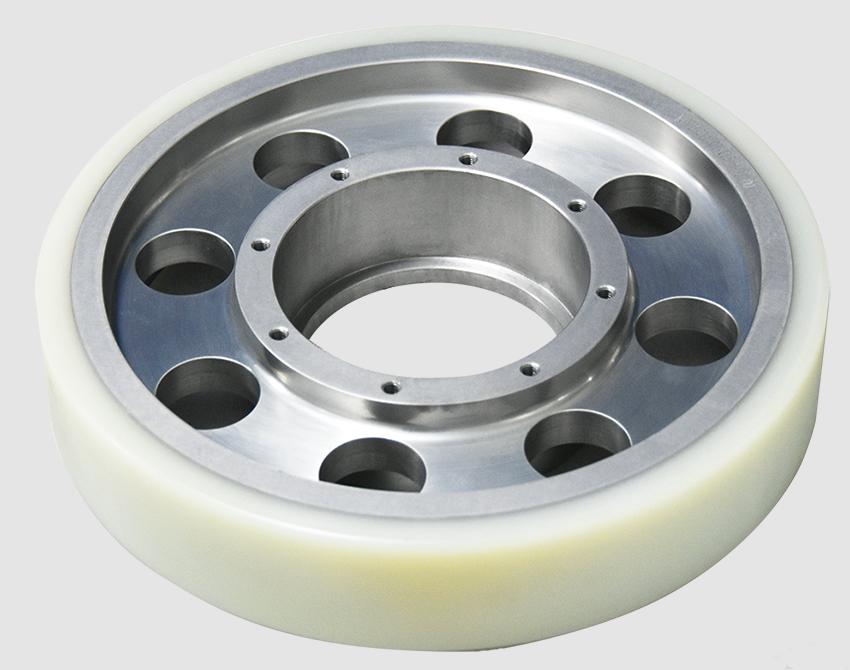

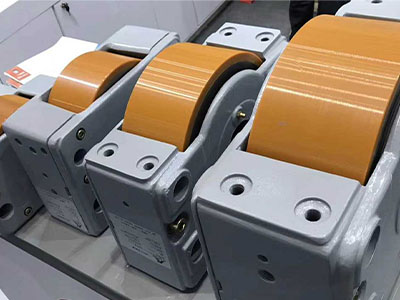

wheel blocks with Vulkollan-binding.

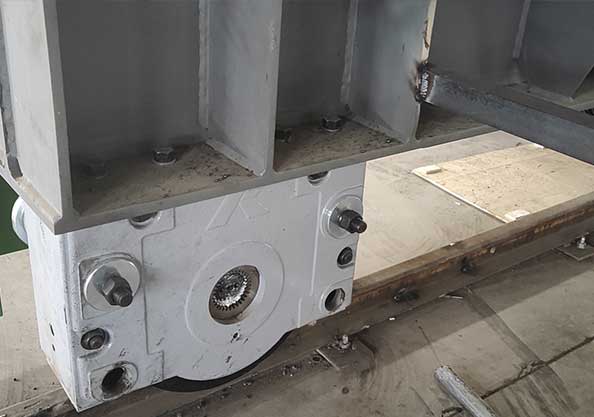

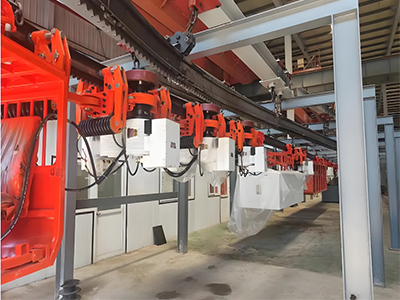

Modular wheel blocks systems for elements in materials handling, installations, and mechanical engineering applications, requiring no additional design or production work.

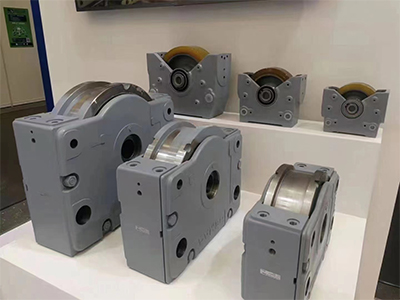

Information about the wheel blocks size

Size	Max. load bearing capacity	Wheel Ø	Weight	Dimensions (mm)
Size	т	мм	кг	a1	b1	b2	c1	h1
DRS-A 112	2.75	112	7.3	190	47	80	96	131
DRS-A 125	5	125	9.9	220	60	80	98	147.5
DRS-A 160	7	160	18.3	275	65	89	110	187
DRS-A 200	10	200	35.7	340	65	101	130	238
DRS-A 250	16	250	62	385	75	110	150	281
DRS-A 315	22	315	117	470	90	130	180	349.5
DRS-A 400	30	400	201	580	110	155	210	440
DRS-A 500	40	500	352	700	110	170	240	566
