Polyurethane Intelligent Handling Equipment Wheels System

Compared with similar products, polyurethane travelling wheel stands out better performance in service life, wear resistance, load and so on, which equipped with various intelligent handling equipment such as stacker, OHCV, OHT and AGV, etc.

Compared with similar products, polyurethane travelling wheel stands out better performance in service life, wear resistance, load and so on, which equipped with various intelligent handling equipment such as stacker, OHCV, OHT and AGV, etc. Advantages of polyurethane wheels are as below:

High strength, high elasticity, low resistance, high pressure resistance, good tear resistance and low noise.

Cleanroom Staker Wheels

Cleanroom staker wheels

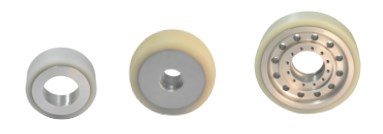

 Available Wheels



PUY wheels cast aluminum / copper / stainless steel


OD(outer diameter)


 Thickness (mm)


 Core Material


 Tyre Material


Load-bearing


   Working Velocity


 Φ100-Φ600


100-300


Aluminum, copper,

stainless steel



   MY9804


Max:35 t


          Max:400 m/min

All polyurethane wheels can be customized according to the different requirements of customers.

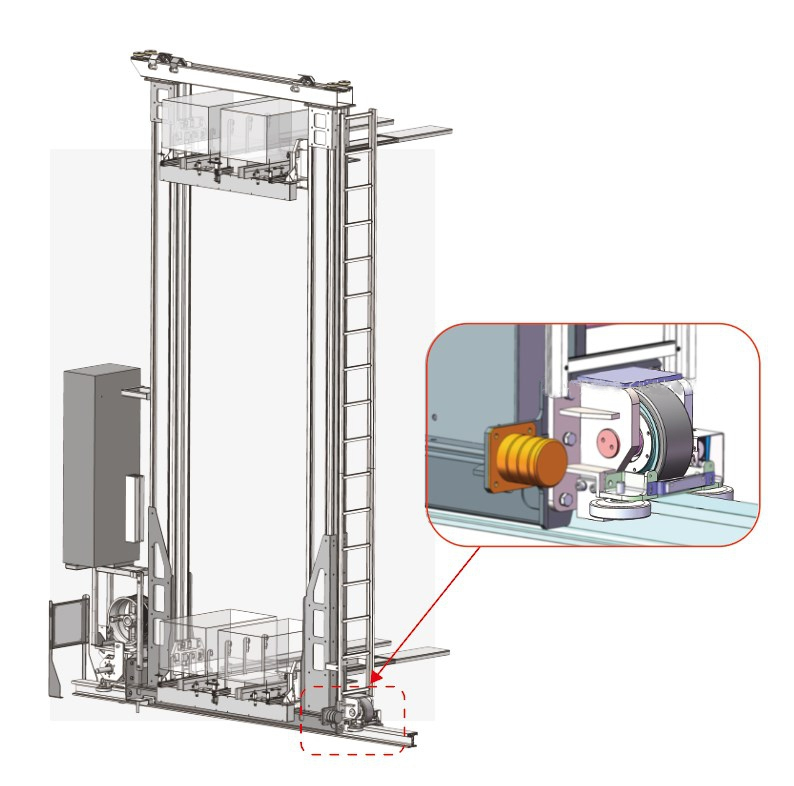

Staker Wheels /Tyres

The stacker plays an important role in lifting and transportation equipment in the three-dimensional warehouse, and it is a symbol of the characteristics of the three-dimensional warehouse. We can provide different types of polyurethane wheels according to the height of the stacker, guide rail, drive mode, degree of automation and operation mode, and provide technical support and optimization solutions.

Staker wheels /tyres

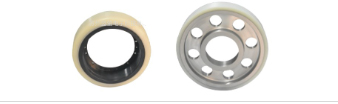

Available Wheels




OD(outer diameter)


Thickness (mm)


 Core Material


 Tyre Material


 Load-bearing


    Working Velocity


Φ100-Φ600


100-300


Aluminum, copper,

stainless steel



    MY9804


   Max:35 t


 Max:300 m/min


Overhead Camshaft Valve(OHCV) Wheels


Overhead camshaft valve(OHCV) wheels

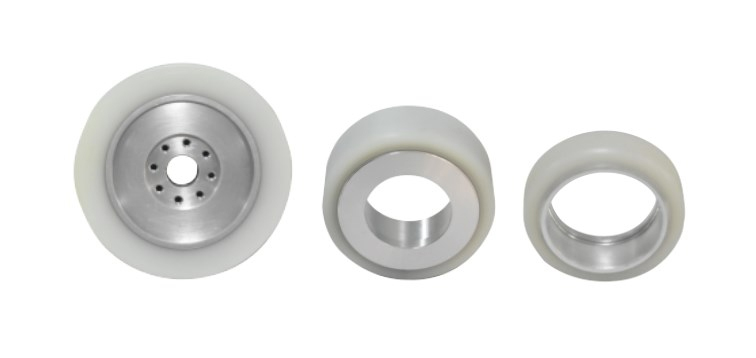

Available Wheels



Aluminum, copper& stainless steel wheels



OD(outer diameter)


Thickness (mm)


  Core Material


Tyre Material


   Load-bearing


  Working Velocity


 Φ100-Φ400


100-300

 Aluminum, copper,

stainless steel



  MY9804


    Max:10 t


   Max:200 m/min

All polyurethane wheels can be customized according to the different requirements of customers。

Out-of-shape Trolley Wheel

Out-of-shape trolley wheel


OD(outer diameter)



Thickness (mm)


Core Material


Tyre Material


Load-bearing


     Working Velocity


Φ100-Φ400


  100-300

Aluminum, copper, stainless steel



 MY9804


Max:10t


     Max:200 m/min

All polyurethane wheels can be customized according to the different requirements of customers.

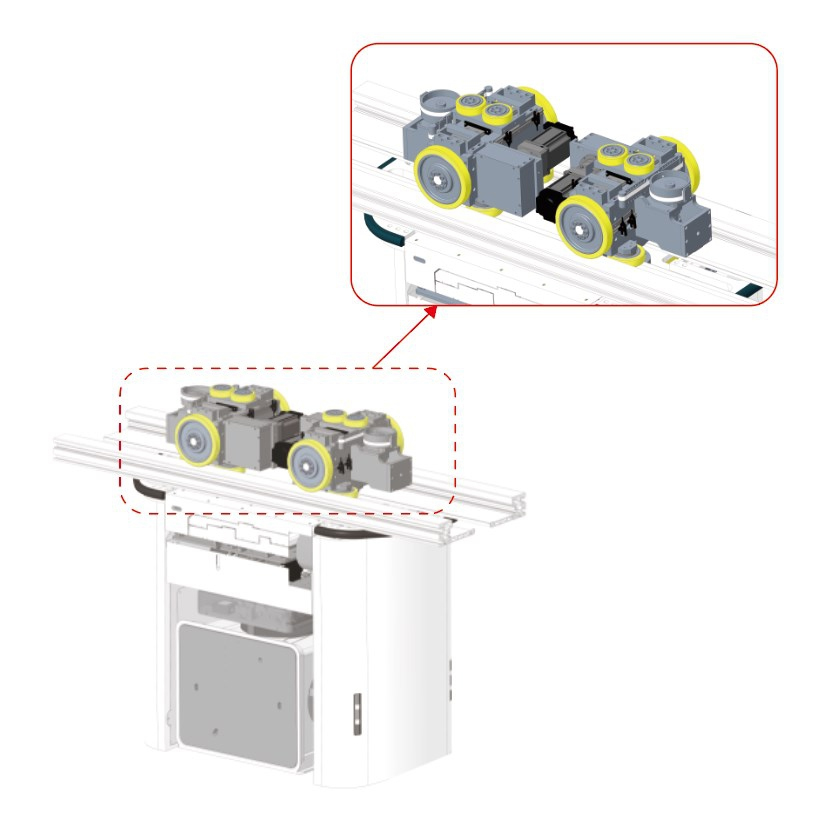

OHT (Overhead Hoist Transfer) Wheels

The OHT is an automated handling device that is capable of traveling on air tracks and is able to access the loading and unloading ports of storage equipment or process equipment "directly" via a belt-driven lifting mechanism. OHT is short for Overhead Hoist Transport.


OHT (Overhead Hoist Transfer) wheels

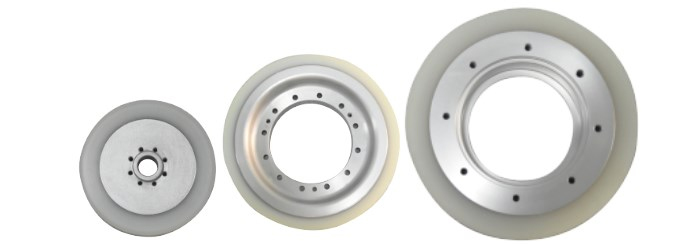

 Available Wheels

PU OHT wheels





    OD(outer diameter)


    Thickness (mm)


Core Material


Tyre Material


Load-bearing


        Working Velocity


  Φ50-Φ600


        25-100

Aluminum, stainless steel


  MY9804


Max: 1t


    Max:400 m/min

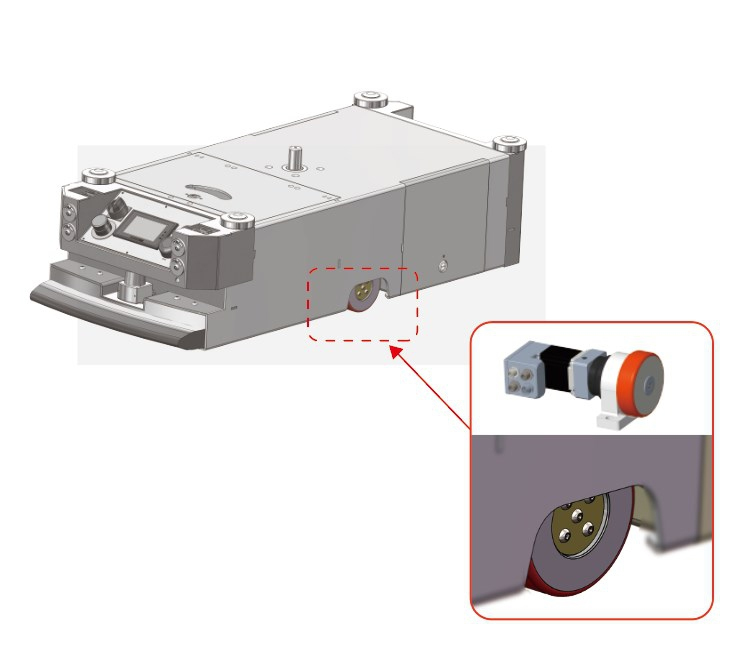

AGV Wheels

AGV is a kind of wheeled mobile robot that moves along wires or marking blocks or magnetic strips on the floor, or through visual navigation or laser navigation, and is mostly used in industrial production, e-commerce picking, unmanned warehouses, intelligent services and other fields. We can customize different driving wheels according to different equipment types and application scenarios to meet the diversified needs of the market.

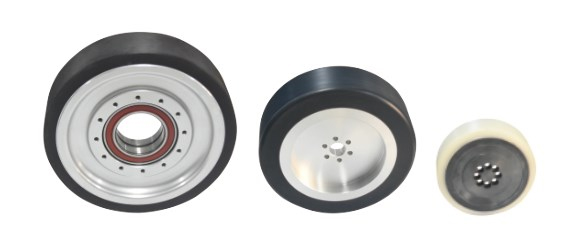

Available Wheels






OD(outer diameter)


Thickness (mm)


Core Material


Tyre Material


Load-bearing


   Working Velocity


Φ100-Φ400


100-300

Aluminum, copper, stainless steel



 MY9804


Max:10 t


    Max:200 m/min

All polyurethane wheels can be customized according to the different requirements of customers.

RGV Wheels


RGV wheels





  Available Wheels





  OD(outer diameter)


Thickness (mm)


Core Material


 Tyre Material


Load-bearing


Working Velocity


   Φ100-Φ600


  100-300


Aluminum, copper,

stainless steel



  MY9804


Max:10 t


Max:200 m/min
