How to Choose The Stacker Wheel Block

Stacker wheel block using steel and mechanical components with a long service life, how to choose the stacker wheel block ? We can follow the following requirements.

Stacker wheel blocks using steel and mechanical components with a long service life, how to choose the stacker wheel? We can follow the following requirements.

1. Stacker wheel blocks are suitable for special design, temperature up to 150°C high temperature occasions. Stacker wheel blocks equipped with high temperature bracket bearings, which can withstand up to 250°C high temperature.

2. The stainless steel design of stacker wheels is especially suitable for chemical and food industries and corrosive environments (RS 125).

Wide Range of Standard Wheel Block Designs

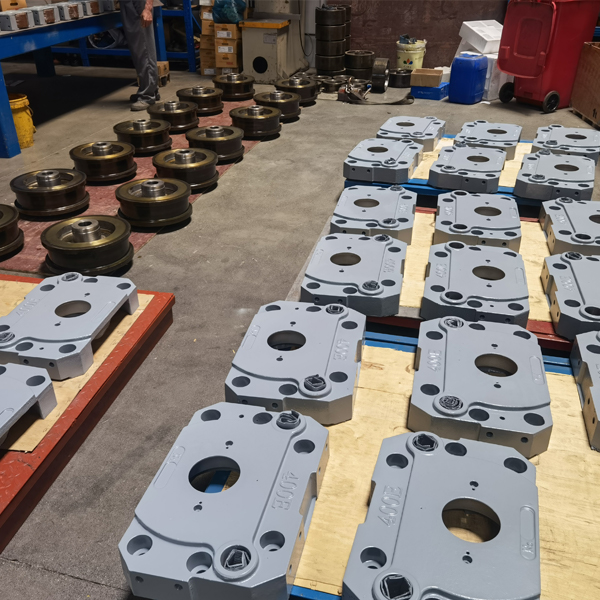

1. The wheel housing of the stacker is made of steel or stainless steel

2. 5 sizes, deadweight range from 3.5 to 18 tons (RS 125 to RS 400)

Convenient to Install

1. Five finished joint face boxes, reserved for mounting holes.

2. Wheel blocks and accessories can be quickly installed and removed.

3. The side of the blocks is reserved for pin mounting holes to install and configure modular mounting accessories, such as torque brackets, guide wheel sets and buffer built-in connections.

Drive Device

1. A robust connection to the hollow shaft of the reducer box (involute spline type) ensures reliable driving torque.

2. It is especially suitable for positive and negative steering situations common in walking applications.

3. The DeMag modular system includes either D1 torque brackets (mounted directly to the wheel box) or D2 torque brackets (mounted to the customer's superstructure) to accommodate the drive torque transfer.
