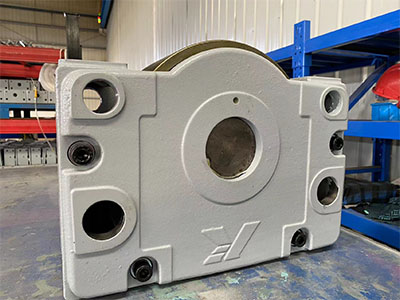

400 Wheel Blocks
400 wheel blocks gear boxes and geared motors horizontal guide-roller arrangement for motors.Our 400 wheel block system is a versatile travel wheel system that works seamlessly with our modular drive system.
Weight:ca.95 bzw. 100kg
max. wheel load : 22000kg

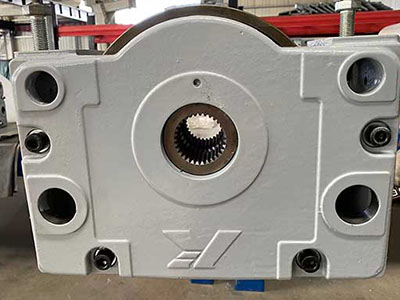

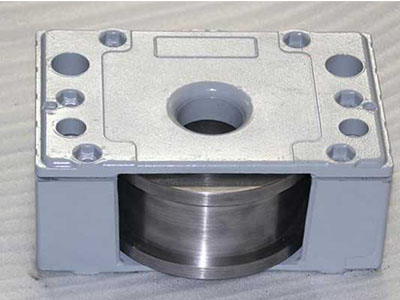

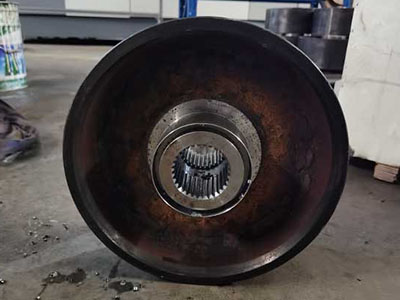

Wheel block 400, driven, with internal taper, with two-sided wheel flange, running tread 75 mm
Wheel block 400, non-driven, without internal taper, with two-sided wheel flange, running tread 75 mm.
Wheel block 400, driven, with internal taper, with two-sided wheel flange, droove track 90 mm, b2 = 220 mm .
Wheel block 400, driven, with internal taper, with middle wheel flange.

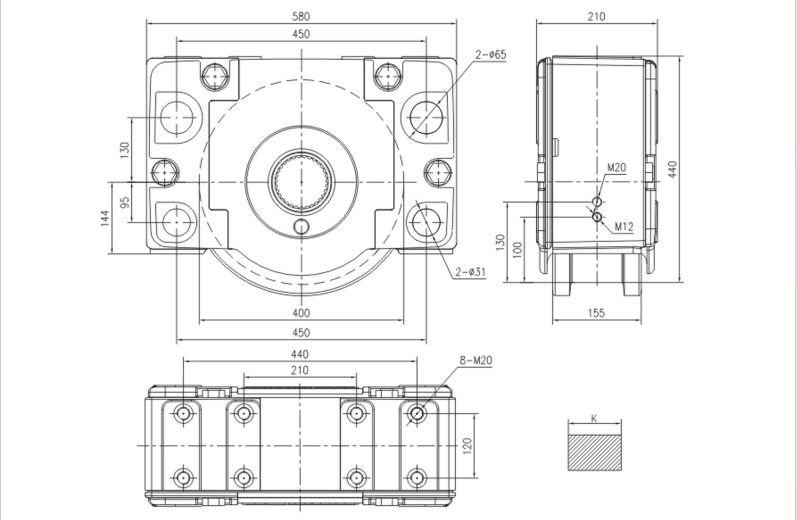

Standard Models -Wheel Blocks
| Size | Max. load bearing capacity | Wheel Ø | Weight | Dimensions (mm) | ||||
| т | мм | кг | a1 | b1 | b2 | c1 | h1 | |
| DRS-A 112 | 2.75 | 112 | 7.3 | 190 | 47 | 80 | 96 | 131 |
| DRS-A 125 | 5 | 125 | 9.9 | 220 | 60 | 80 | 98 | 147.5 |
| DRS-A 160 | 7 | 160 | 18.3 | 275 | 65 | 89 | 110 | 187 |
| DRS-A 200 | 10 | 200 | 35.7 | 340 | 65 | 101 | 130 | 238 |
| DRS-A 250 | 16 | 250 | 62 | 385 | 75 | 110 | 150 | 281 |
| DRS-A 315 | 22 | 315 | 117 | 470 | 90 | 130 | 180 | 349.5 |
| DRS-A 400 | 30 | 400 | 201 | 580 | 110 | 155 | 210 | 440 |
| DRS-A 500 | 40 | 500 | 352 | 700 | 110 | 170 | 240 | 566 |

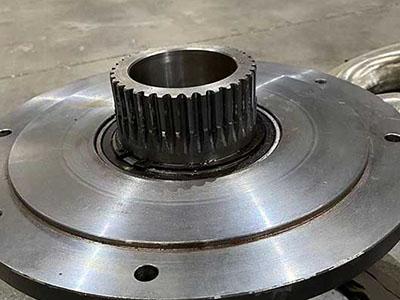

Central Drive Unit
Both wheel blocks are driven with only one gear motor
(Splined-shaft profile, feather key connection and shrink disc attachment)
If you require a rework or a custom-made product, please contact Philson directly.
