Heavy Duty DRSA 500 Drive Wheel Block

Heavy duty DRSA 500 drive wheel block is a travel wheel block model with a diameter of 500mm, suitable for logistics warehousing, rail car, stacker, crane and other equipment, can be polyurethane coasted, is an intelligent track wheel.

500 drive wheel block

500 Drive Wheel Components

Heavy duty DRSA 500 travelling wheel block is an important part of intelligent car RGV car travelling wheel box, it is mainly composed of deceleration motor, lower beam, active travelling wheel set, passive travelling wheel set, lower beam guide wheel, and buffer and other parts.

Our drive wheel system is a versatile travel wheel system that is fully integrated into our modular drive system. Eight finely graded sizes with a load capacity of up to 40 tons per wheel provide the right wheel for every application.

The 500 wheel can be adapted to almost all walking tracks and operating systems. Complete walking unit with precisely matched gear motors in a modular drive system, with high stiffness thanks to special stiffeners, horizontal guide roll arrangements and (optional) buffers of various sizes and designs.

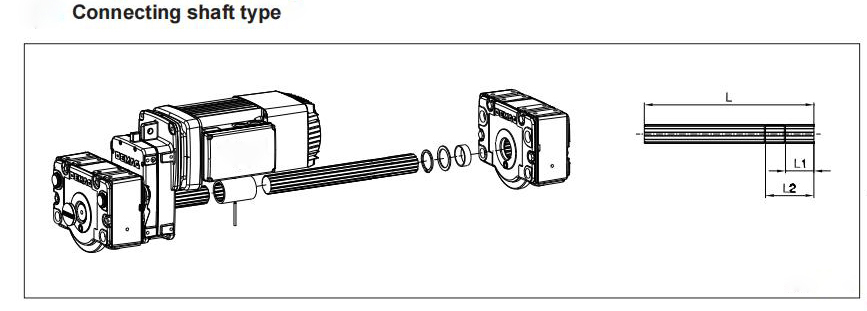

500 Drive wheel block shaft

AGV 500 Wheel Block Features

 1. Fully enclosed design with life-long maintenance free.

 2. 42CrMo wheel with high tensile strength, overall tempering, surface high-frequency quenching, wear resistance, and its design service life of ten years.

 3. Single wheel block carrying capacity is large, walking sound is light.

 4. The spline hub of the driving wheel is connected with the spline of the ABM reducer motor. The structure is compact and the design is reasonable.

 5. Modular standard design, a full set of walking solutions and components, greatly simplifying customer walking mechanism design costs and time.

 6.  Adopting bearing NSK bearing with long service life.

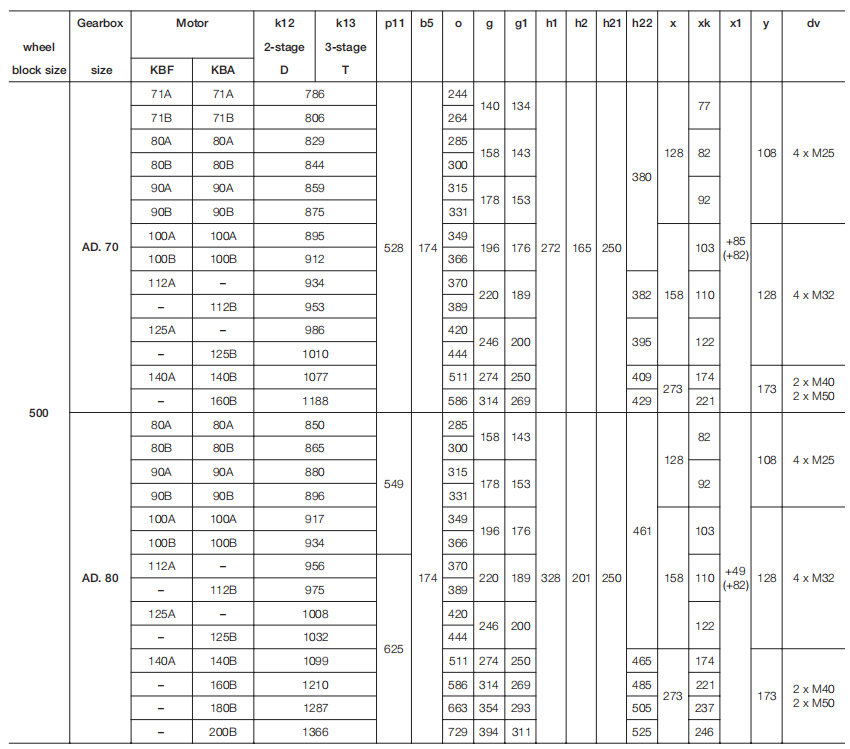

500 drive wheel block type

Installation

One of the distinguishing features of the Philson smart travel wheel is the pre-mounted surface, which provides substantial convenience for many mounting arrangements.There are 4 common installation methods:top mounted with bolts ,end mounted with welded structures, single mounted for hollow structures and shaft pin mounted for beam mounting.

Philson travelling wheel block is a multi-purpose, compact travelling wheel block with flexible installation and excellent performance; The bearing range is wide, the wheel load ranges from 2.75 tons to 40 tons, and the scientific series division (112~500) helps to ensure that each application has a matching wheel block.
